1. small button cell type

2. stainless steel

3. compression

4. protection class IP65

Excitation voltage + :

Blue

Signal+:

White

Signal -:

Red

Excitation voltage -:

Black

 Technical data

 Unit

额定载荷

Capacity

kg

10

灵敏度

Sensitivity

mV/V

1

灵敏度误差

Sensitivity tolerance

%

-10%~+10%

非线性误差

Non-linearity

% of Cn

±0.5

滞后误差

Hysteresis

% of Cn

±0.5

蠕变、蠕变恢复

Creep、DR

%/30min

±0.5

重复性

Repeatability

% of Cn

±0.5

零点平衡

Zero balance

mV/V

±0.05

输入电阻

Input resistance

Ω

350±30

输出电阻

Output resistance

Ω

350±3

温度对零度的影响

Temperature effective on zero

% of Cn

±0.1

温度对灵敏度的影响

Temperature effective on sensitivity

% of Cn

±0.1

标准激励电压

Reference voltage

V

5

工作电压范围

Operation voltage

V

1…15

额定温度范围

Nominal temperature range

℃

-10～+40

工作温度范围

Service temperature range

℃

-10～+50

存储温度范围

Storage temperature range

℃

-25～+70

绝缘电阻

Insulation resistance

GΩ/100V

＞5

安全承载

Safe load limit

% of Emax

150

极限承载

Breaking load limit

% of Emax

300

保护等级

IP

IP66

FBC13A-10kg-2

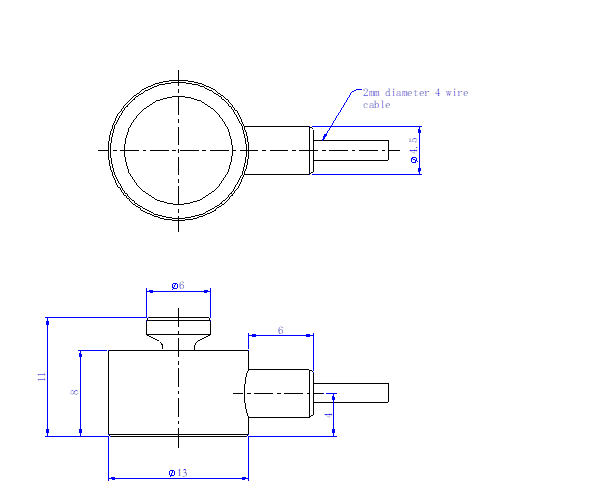

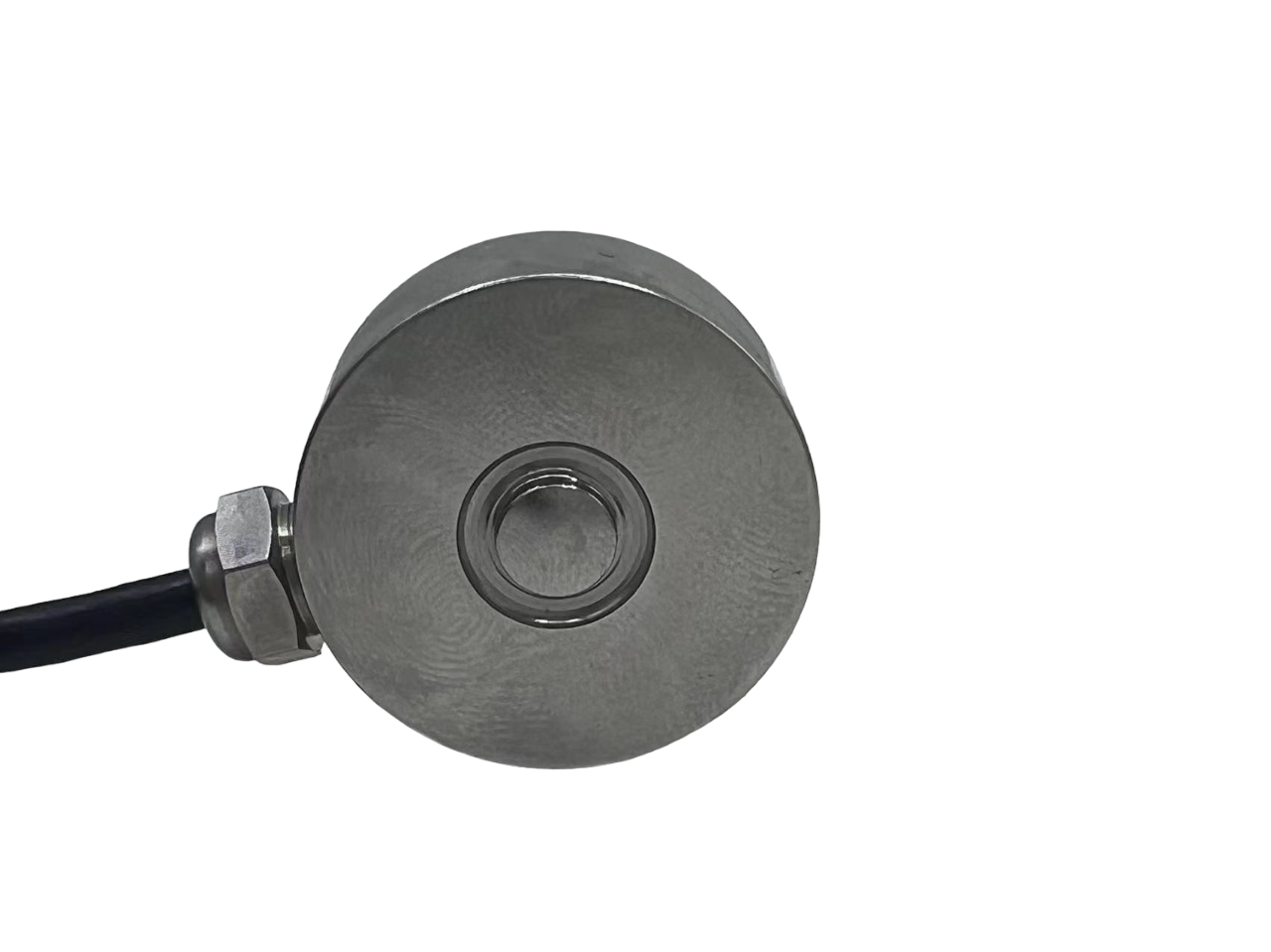

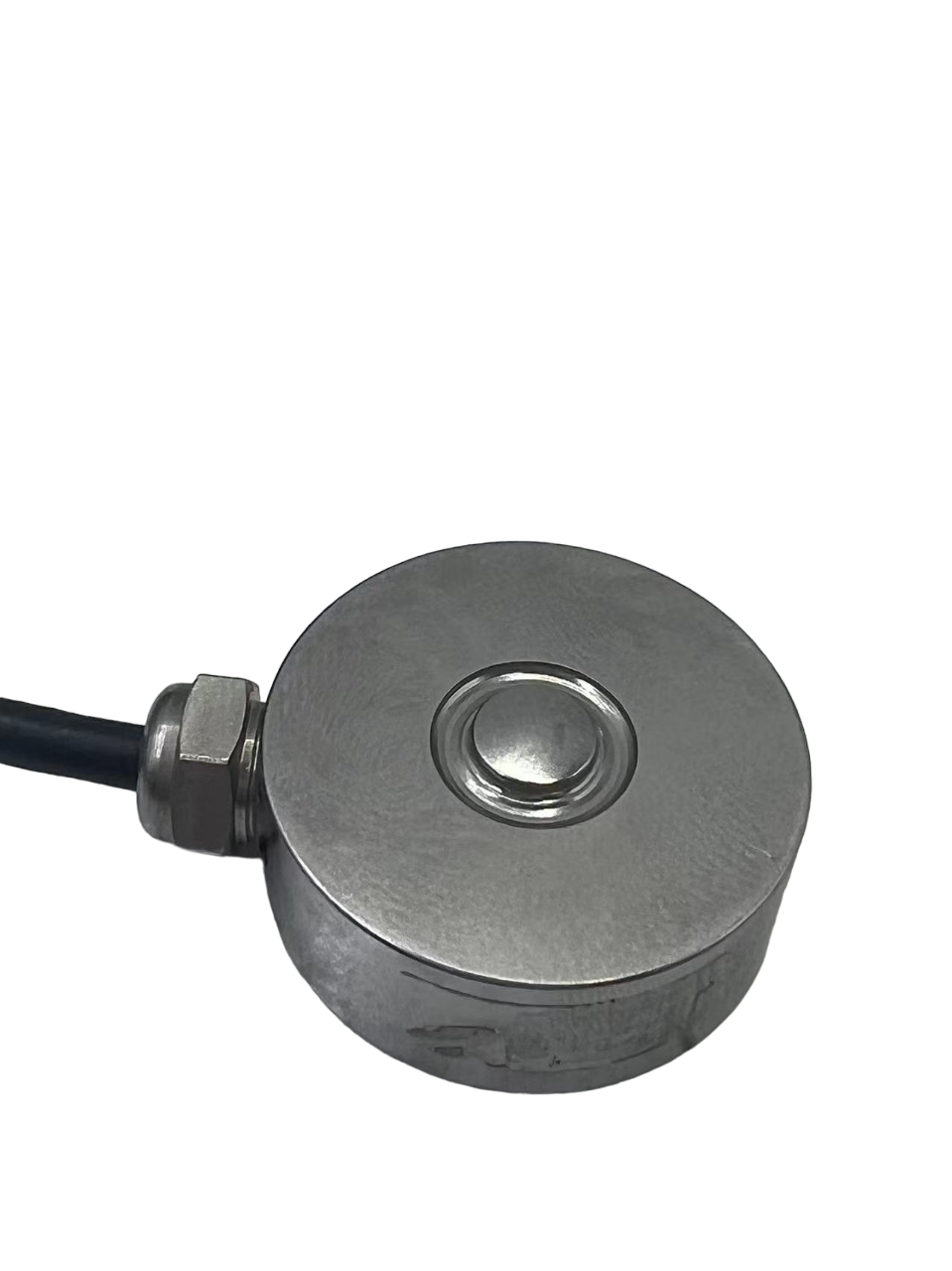

Force transducer, 13 diameter, 10kg capacity
