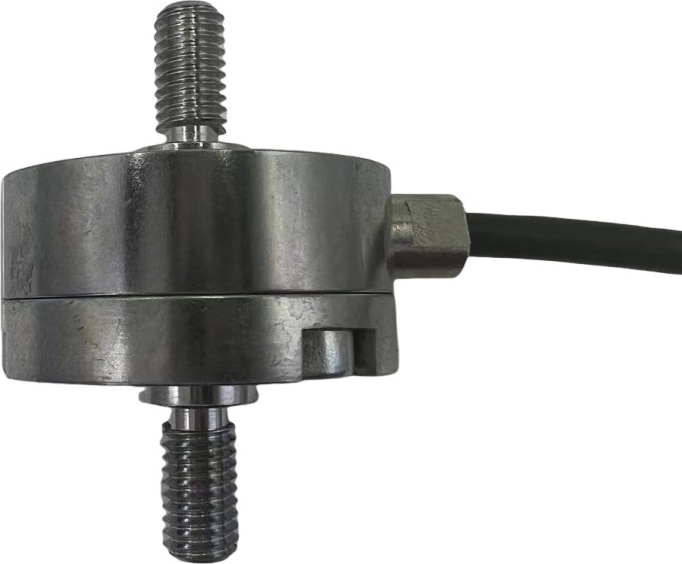

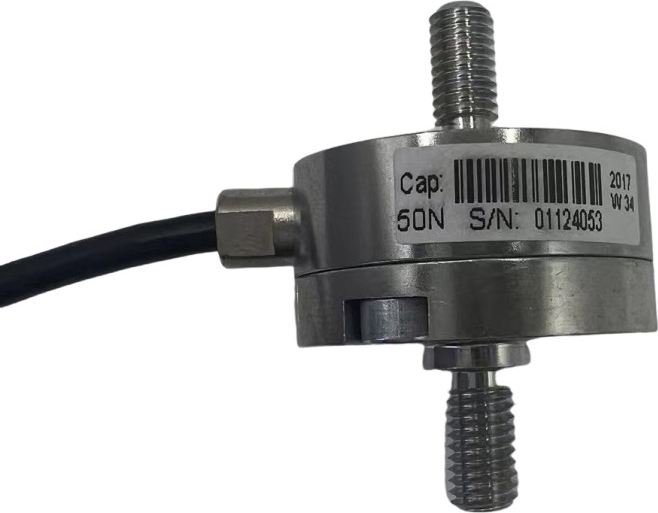

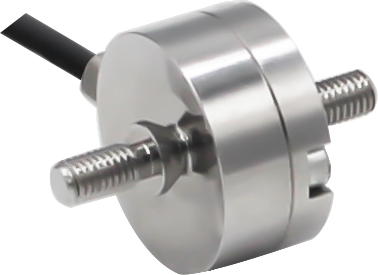

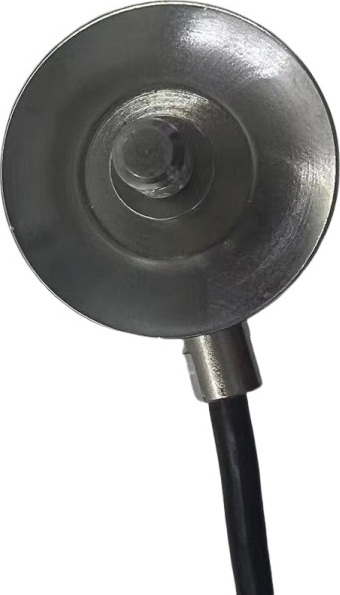

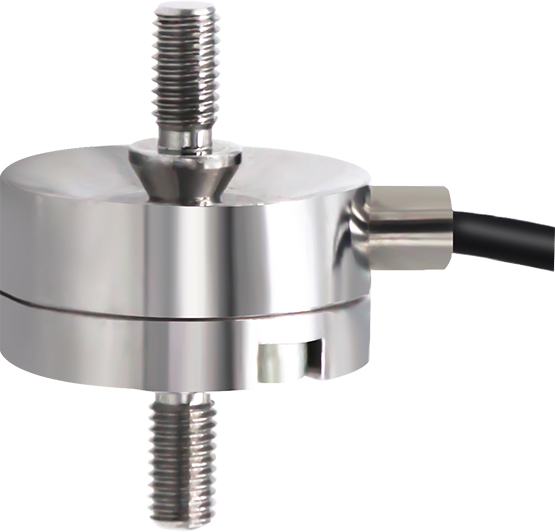

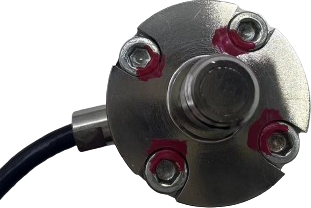

1. small button cell type

2. stainless steel

3. tension and compression

4. high protection class

50, 100, 200，500

5

8

1kN

6

8

2kN

8

10

Excitation voltage + :

Red

Signal+:

Green

Signal -:

White

Excitation voltage -:

Black

 Technical data

 Unit

额定载荷

Capacity

N

kN

50, 100, 200, 500

1, 2, 5

灵敏度

Sensitivity

mV/V

1

灵敏度误差

Sensitivity tolerance

%

-10%~+10%

非线性误差

Non-linearity

% of Cn

±0.1

滞后误差

Hysteresis

% of Cn

±0.1

蠕变、蠕变恢复

Creep、DR

%/30min

±0.05

重复性

Repeatability

% of Cn

±0.1

零点平衡

Zero balance

mV/V

±0.02

输入电阻

Input resistance

Ω

350±30

输出电阻

Output resistance

Ω

350±3

温度对零度的影响

Temperature effective on zero

% of Cn

±0.1

温度对灵敏度的影响

Temperature effective on sensitivity

% of Cn

±0.1

标准激励电压

Reference voltage

V

5

工作电压范围

Operation voltage

V

1…15

额定温度范围

Nominal temperature range

℃

-10～+40

工作温度范围

Service temperature range

℃

-10～+50

存储温度范围

Storage temperature range

℃

-25～+70

绝缘电阻

Insulation resistance

GΩ/100V

＞5

安全承载

Safe load limit

% of Emax

150

极限承载

Breaking load limit

% of Emax

300

保护等级

IP

IP67

FBC26-50N-2

Force transducer, 26 diameter, 50N capacity, tension and compression

FBC26-100N-2

Force transducer, 26 diameter, 100N capacity, tension and compression

FBC26-200N-2

Force transducer, 26 diameter, 200N capacity, tension and compression

FBC26-500N-2

Force transducer, 26 diameter, 500N capacity, tension and compression

FBC26-500N-2

Force transducer, 26 diameter, 500N capacity, tension and compression

FBC26-1kN-2

Force transducer, 26 diameter, 1kN capacity, tension and compression

FBC26-2kN-2

Force transducer, 26 diameter, 2kN capacity, tension and compression

FBC26-5kN-2

Force transducer, 26 diameter, 5kN capacity, tension and compression
