features：
1.small mini S type
2.stainless steel
3.compression and tension
4.high protection class
Wiring code:
Excitation voltage + :Green
Signal+:White
Signal -:Red
Excitation voltage -:Black

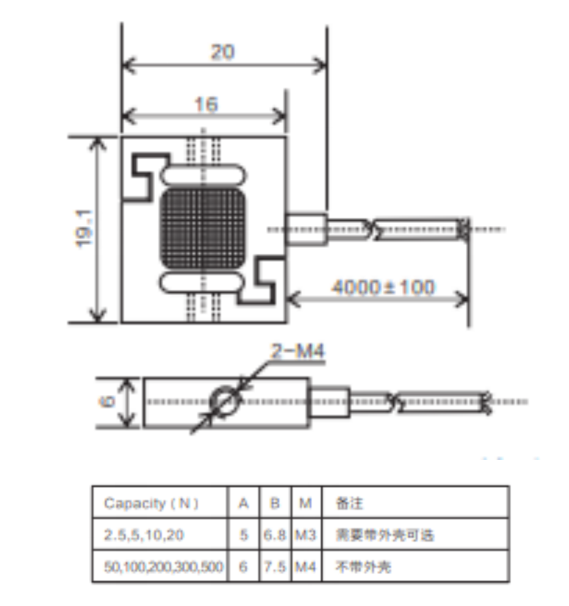

Technical data
额定载荷 Capacity | N | 5, 10, 20, 50, 100, 200, 500 |
灵敏度 Sensitivity | mV/V | 1 |
灵敏度误差 Sensitivity tolerance | % | -10%~+10% |
非线性误差 Non-linearity | % of Cn | ±0.1 |
滞后误差 Hysteresis | % of Cn | ±0.1 |
蠕变、蠕变恢复 Creep、DR | %/30min | ±0.1 |
重复性 Repeatability | % of Cn | ±0.05 |
零点平衡 Zero balance | mV/V | ±0.05 |
输入电阻 Input resistance | Ω | 350±30 |
输出电阻 Output resistance | Ω | 350±3 |
温度对零度的影响 Temperature effective on zero | % of Cn | ±0.1 |
温度对灵敏度的影响 Temperature effective on sensitivity | % of Cn | ±0.1 |
标准激励电压 Reference voltage | V | 5 |
工作电压范围 Operation voltage | V | 1…15 |
额定温度范围 Nominal temperature range | ℃ | -10～+40 |
工作温度范围 Service temperature range | ℃ | -10～+50 |
存储温度范围 Storage temperature range | ℃ | -25～+70 |
绝缘电阻 Insulation resistance | GΩ/100V | ＞5 |
安全承载 Safe load limit | % of Emax | 150 |
极限承载 Breaking load limit | % of Emax | 300 |
保护等级 IP | IP67 |
Ordering number
Part number | Description |
Force transducer, Mini S type, 5N capacity | |
Force transducer, Mini S type, 10N capacity | |
FSM-20N-2 | Force transducer, Mini S type, 20N capacity |
FSM-50N-2 | Force transducer, Mini S type, 50N capacity |
FSM-100N-2 | Force transducer, Mini S type, 100N capacity |
FSM-200N-2 | Force transducer, Mini S type, 200N capacity |
FSM-500N-2 | Force transducer, Mini S type, 500N capacity |
