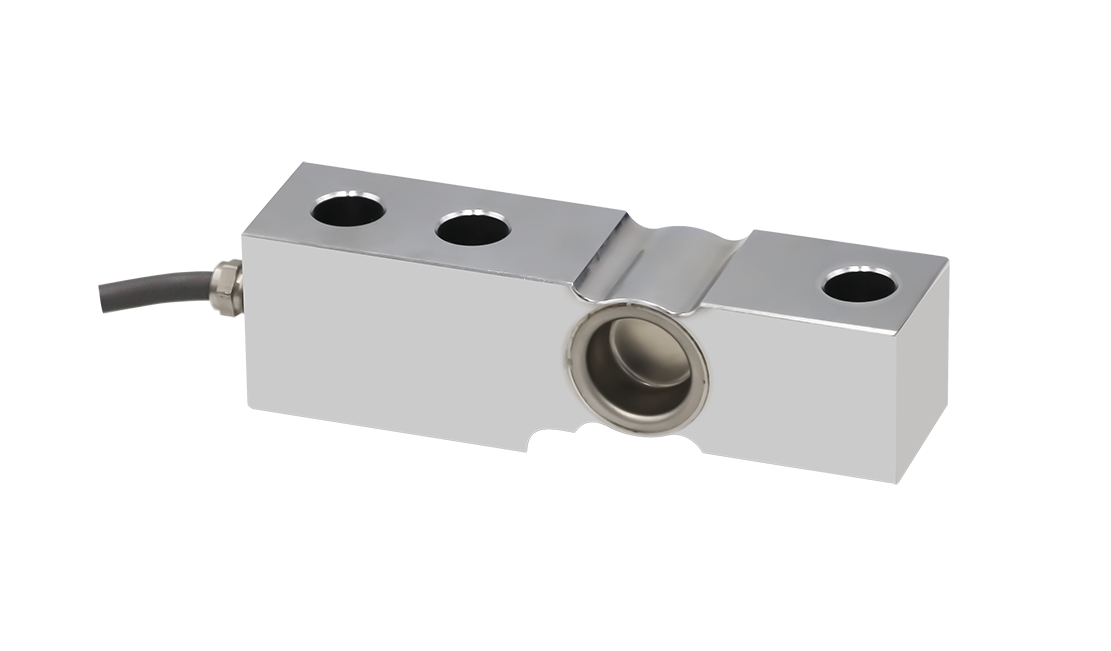

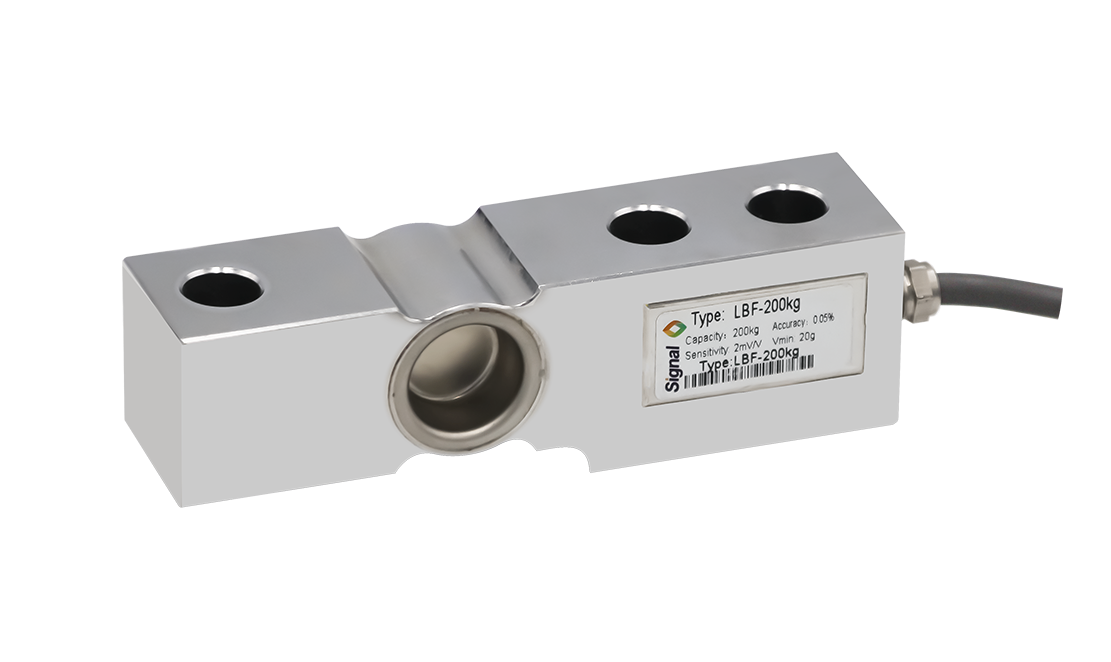

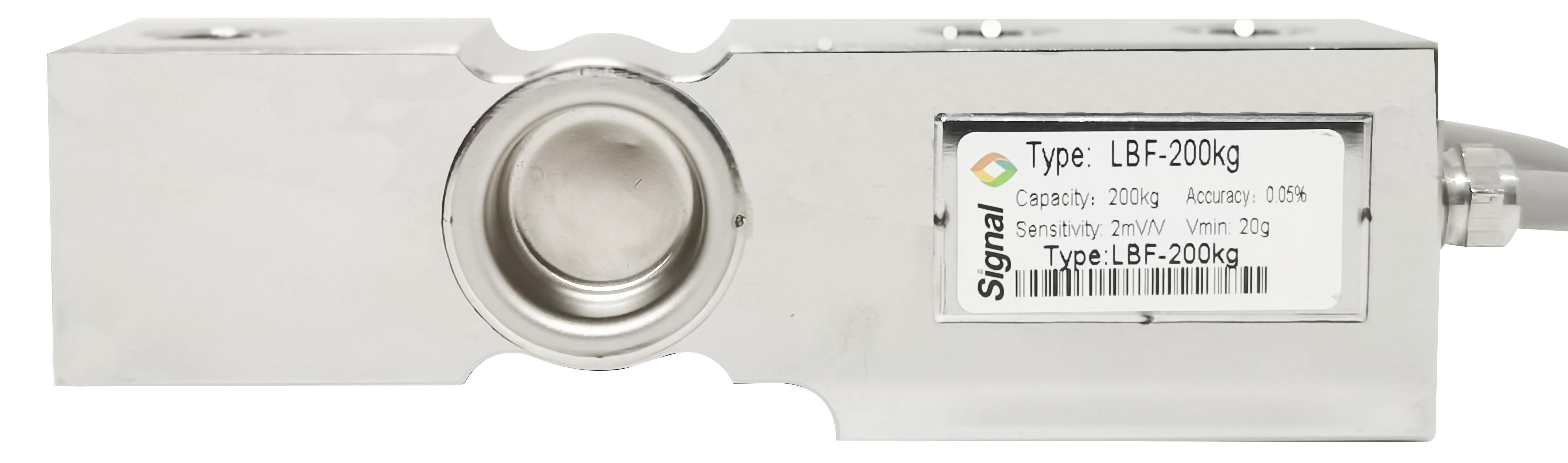

LBF-200kg

200kg

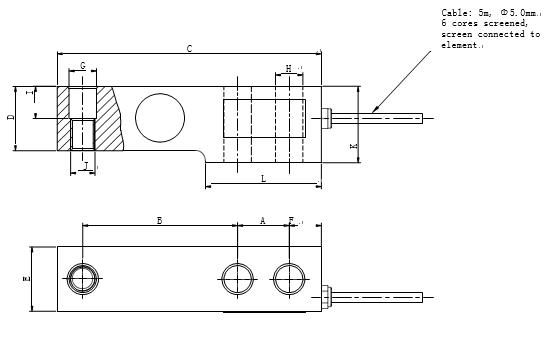

25.4

76.2

130

32

32

15.8

13.5

13.5

16

M12*1.75

38

57

LBF-500kg

500kG

25.4

76.2

130

32

32

15.8

13.5

13.5

16

M12*1.75

38

57

LBF-1T

1T

25.4

76.2

130

32

32

15.8

13.5

13.5

16

M12*1.75

38

57

LBF-2T

2T

25.4

76.2

130

32

32

15.8

13.5

13.5

16

M12*1.75

38

57

LBF-3T

3T

38.1

95.3

171.5

42

38.1

19

20

20

21

M18*1.5

44.5

76

LBF-5T

5T

38.1

95.3

171.5

42

38.1

19

20

20

21

M18*1.5

44.5

76

LBF-10T

10T

50.8

147.1

223.3

32

32

26.4

26.2

26.2

25.4

M24*2.0

57.2

101

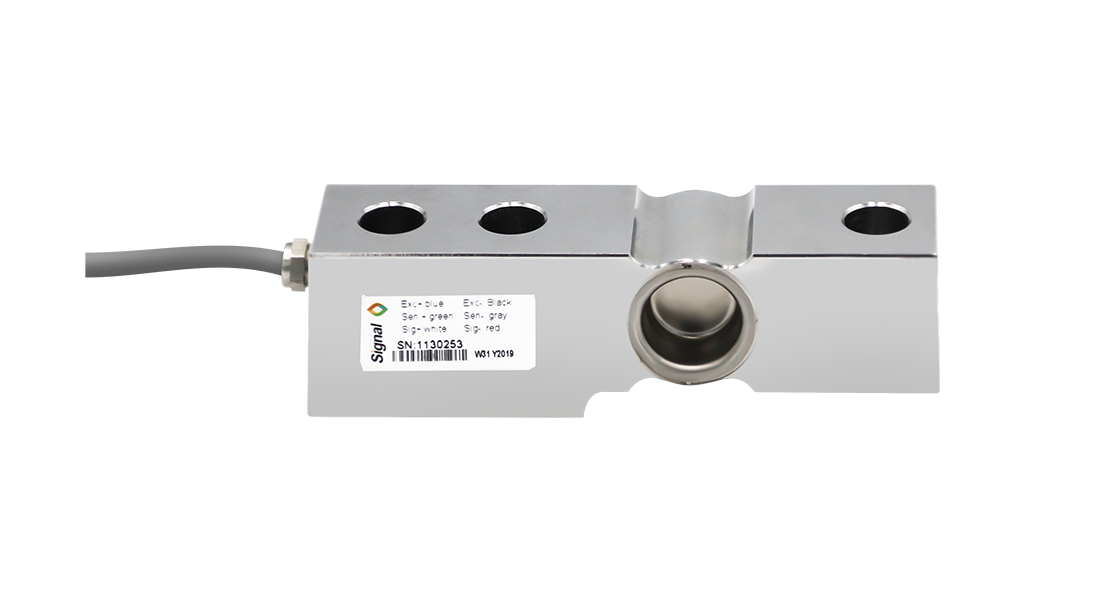

Excitation voltage+:

blue

Excitation voltage-:

black

Signal+:

white

Signal-:

red

Sen+:

green

Sen-:

grey

Shield:

blank, connect to element

精度等级 Accuracy

0.03 %

额定量程Emax（Max. capacity）

Kg

t

200, 500

1, 2, 3 ,5 ,10

最小检定分度值 Vmin

 %of Emax

0.0100

灵敏度 Sensitivity

mV/V

2.0

灵敏度误差范围 Tolerance on sensitivity

 %

±0.01000

温度对灵敏度影响 Temperature effective on sensitivity

 %of Cn/10K

±0.0150

温度对零点影响 Temperature effective on zero

 %of Cn/10K

±0.0280

非线性误差 Non-linearity

 %of Cn

±0.0300

滞后误差Hysteresis error

 % of Cn

±0.0300

蠕变及蠕变恢复 30mins,Creep、MDLR

 %/30min

±0.0300

零点平衡Zero balance

mV/V

0±0.01

输入电阻Input resistance

Ω

>350

输出电阻Output resistance

Ω

350±3

参考电压Reference excitation voltage

V

5

最大工作电压 Maximum excitation voltage

V

5… 15

绝缘电阻Insulation resistance

GΩ /100V

＞5

额定温度范围Nominal temperature range

℃

-10～+40

工作温度范围Operating temperature range

℃

-30～+70

存储温度范围 Storage temperature range

℃

-50～+85

安全承载 Safe load limit

 % of Emax

150

极限承载 Breaking load

 % of Emax

100

额定载荷Emax, （Max. capacity）

 % of Emax

300

允许动态载荷 Permissible dynamic load

 % of Emax

70

最大载荷变形量 Deflection at max. load

mm

0.5

防护等级 Protection class

IP68

材料 Material

弹性体 Measuring body 电缆连接Cable entrance 电缆线 Cable sheath

Stainless steel

Stainless steel

PVC
