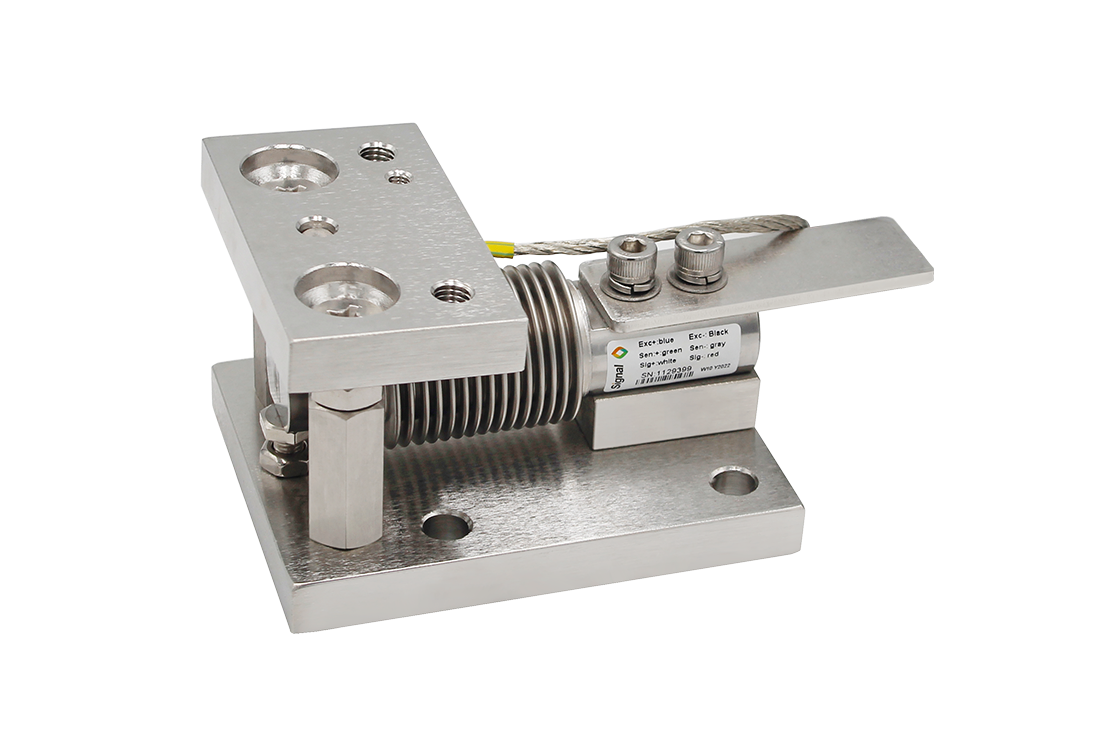

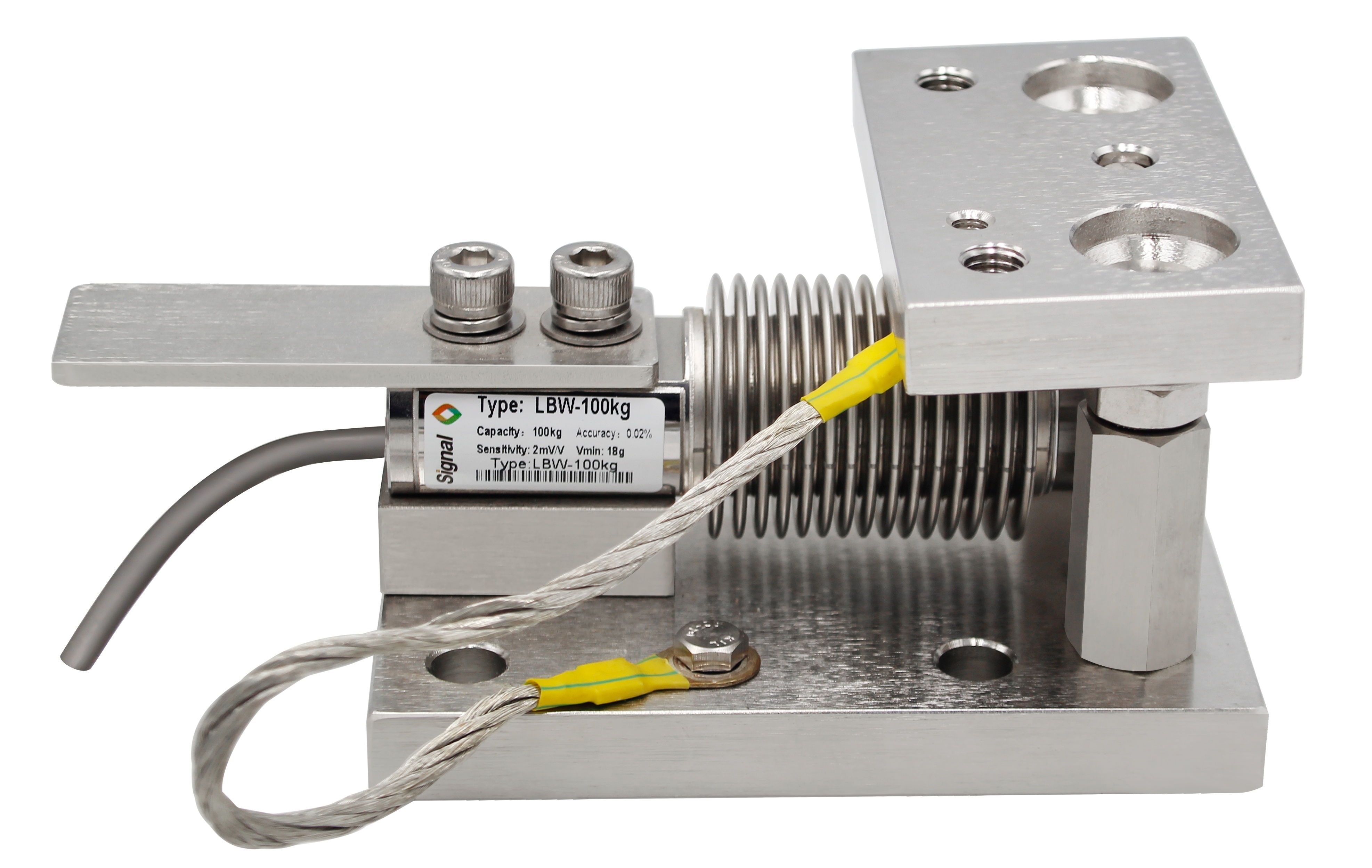

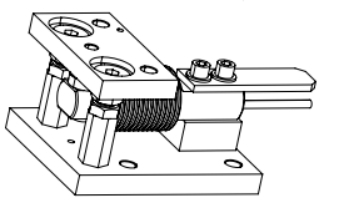

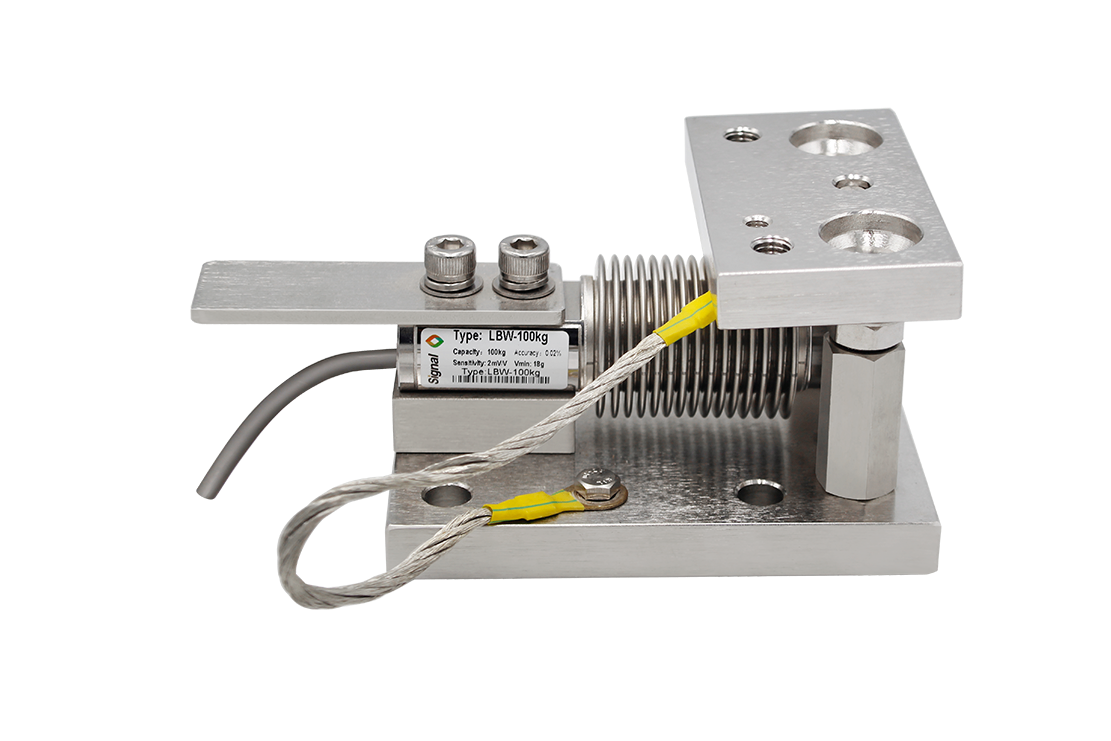

Excitation voltage+:

blue

Excitation voltage-:

black

Signal+:

white

Signal-:

red

Sen+:

green

Sen-:

grey

Shield:

blank, connect to element

精度

Accuracy

0.05%

0.02%

量程

Emax（Max. capacity）

Kg

5; 10; 20; 30;

50; 100;

200; 500

10; 20; 30; 50; 100; 200; 500

最小工作电压

vmin

% of Cn

0.0360

0.0090

灵敏度

Sensitivity

mV/V

2

灵敏度误差范围

Tolerance on sensitivity

%

＜±0.1

温度对灵敏度得影响

Temperature effective on sensitivity

% of Cn/10K

＜±0.0500

＜±0.0080

温度对零度得影响

Temperature effective on zero

% of Cn/10K

＜±0.0500

＜±0.0125

非线性

Non-linearity

% of Cn

＜±0.0500

＜±0.0180

滞后误差

Hysteresis error

% of Cn

＜±0.0500

＜±0.0170

零点平衡

Zero balance

mV/V

0±0.01

蠕变（30分钟）

30mins,Creep、MDLR

%/30min

＜±0.0490

＜±0.0166

输入电阻

Input resistance

Ω

350～480

输出电阻

Output resistance

Ω

356±5

356±3

供电参考电压

Reference excitation voltage

V

5

最大供电电压

Maximum excitation voltage

V

12

绝缘电阻

Insulation resistance

GΩ/100V

＞5

温度补偿范围

Nominal temperature range

℃

-10～+40

工作温度范围

Operating temperature range

℃

-30～+70

存储温度范围

Storage temperature range

℃

-50～+85

安全载荷

Safe load limit

% of Emax

150

极限载荷

Breaking load

% of Emax

300

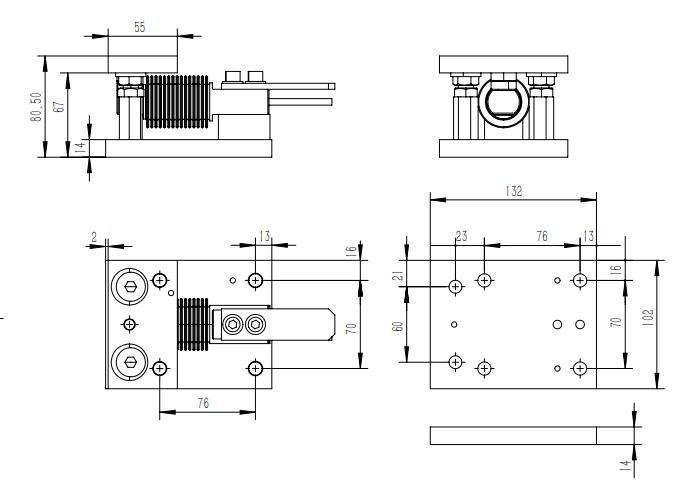

传感器重量

Emax, Max. capacity

kg

5

10

20

30

50

100

200

500

允许动态载荷

Permissible dynamic load

% of Emax

100

100

100

100

100

100

100

70

最大载荷挠度

Deflection at max. load

mm

0.24

0.3

0.29

0.26

0.27

0.31

0.39

0.6

重量约度

Weight, approx

kg

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

防护等级

Protection class

IP68

主要材料Material

弹性体Measuring body

波纹管Metal below

电缆接头Cable entrance

电缆线Cable sheath

 Stainless steel

Stainless steel

Stainless steel

PVC
